IFEX® impulse fire-fighting technology

How impulse extinguishing works

The secret of the impulse process comes down to two words: efficient water use. That highly efficient contact with water creates the biggest advantage – fast extinguishing of the seat of the fire.

Solutions for every intervention

From the portable gun to vehicles, containers and helicopters – choose a group to see the products and their technical data.

The impulse gun is the heart of the technology. Combined with a backpack or trolley, it makes the ideal team for a fast first attack.

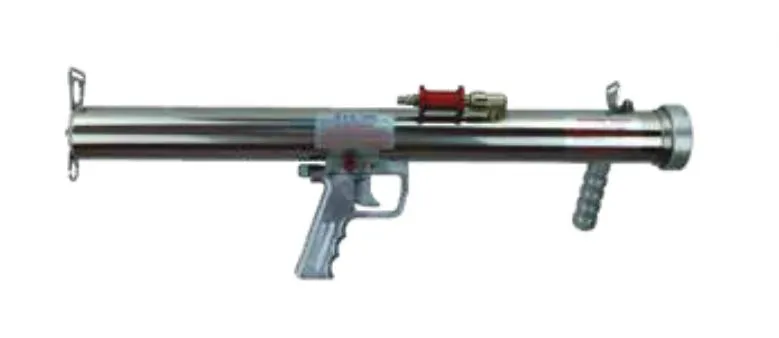

IFEX® 3001 1-litre impulse gun

Stainless-steel body with a pressure chamber at the rear, a quick-opening valve and a front chamber for water or agent. When the valve opens, compressed air drives the agent out within milliseconds at over 400 km/h. Can also be used with foam.

Technical data

Water / agent capacity	1 litre
Length / diameter	800 mm / 70 mm
Empty weight	6.8 kg
Cylinder material	Stainless steel SS 304
Volume per shot	0.25 – 1.0 litre
Max. throw range	16 m
Spray width / distance	3.0 m / 5 m
Air working / test pressure	25 bar / 64.4 bar
Safety valve	38 bar
Valve opening speed	120 m/s = 432 km/h
Droplet size	2 – 200 microns

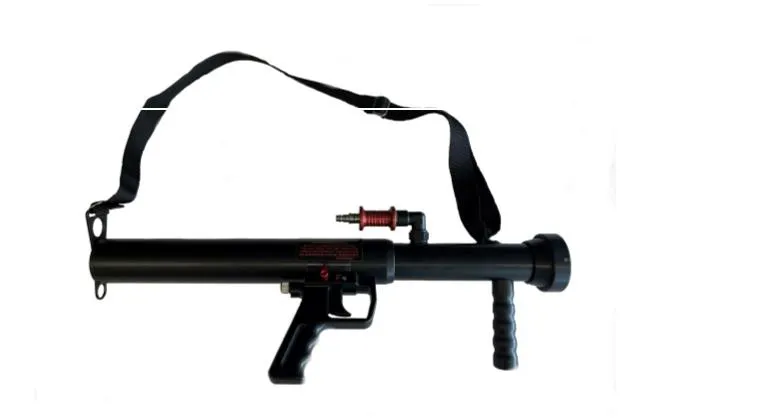

IFEX® 3005 gun – lower recoil

A further development of the 3001: the air and water chambers are smaller, so recoil is lower and the gun is lighter. Can also be used with foam.

Technical data

Water / agent capacity	0.5 litre
Air cylinder capacity	0.3 litre
Overall length	657 mm
Empty weight	approx. 5.4 kg
Max. throw range	15 m
Working pressure	25 bar

IFEX®

IFEX® CAFS gun

Compressed Air Foam System for class A and B fires with premixed foam. It connects with quick couplings and is ready at once; the jet adjusts steplessly from a wide spray up to 10 m. Its main purpose: laying a foam blanket.

Technical data

Flow rate	13 L/min at 4 bar
Overall length	470 mm
Empty weight	approx. 4.8 kg
Max. throw range	10 m
Working pressure	25 bar

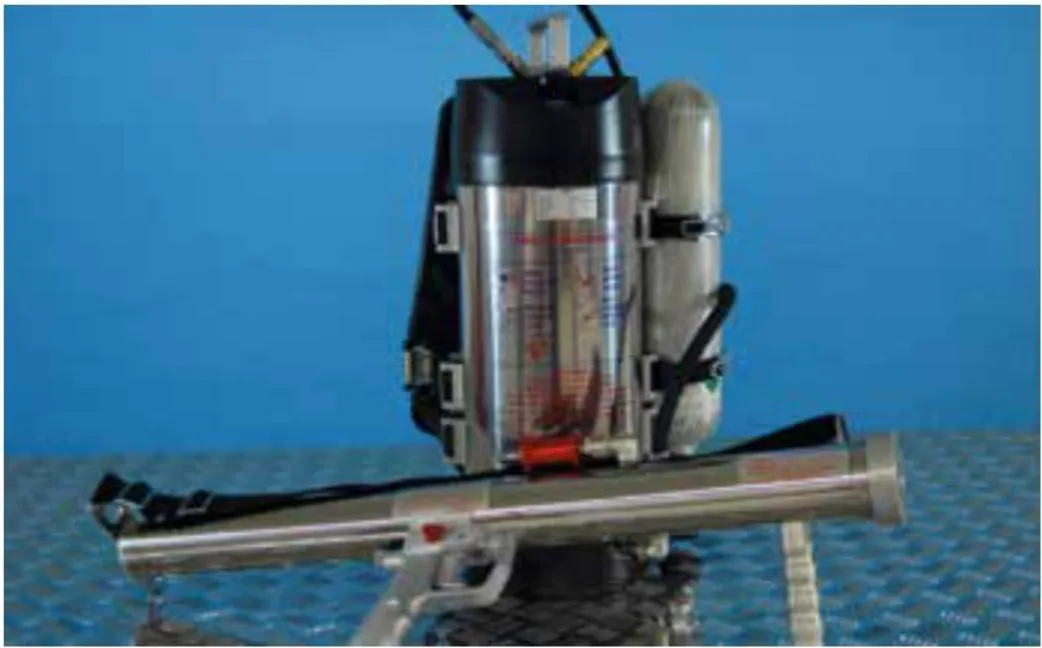

IFEX® 13-litre backpack 3001/12

The most mobile supply unit: agent tank, pressure vessel and regulator for the gun's air and water. Water and additives are filled straight into the tank; foam concentration drops to 0.5–1 % instead of the usual 3–6 %. The frame has room for a spare 2-litre cylinder.

Technical data

Agent capacity	13 litres
Compressed air cylinder	2 litres
Width × depth × height	360 × 260 × 625 mm
Empty / full weight	10.3 kg / 23.3 kg
Tank	Stainless steel 1.4301 – SS304
Safety valve	6.2 bar
Working / test pressure	6 bar / 7.8 bar
Recommended additive	0.5 – 1 %

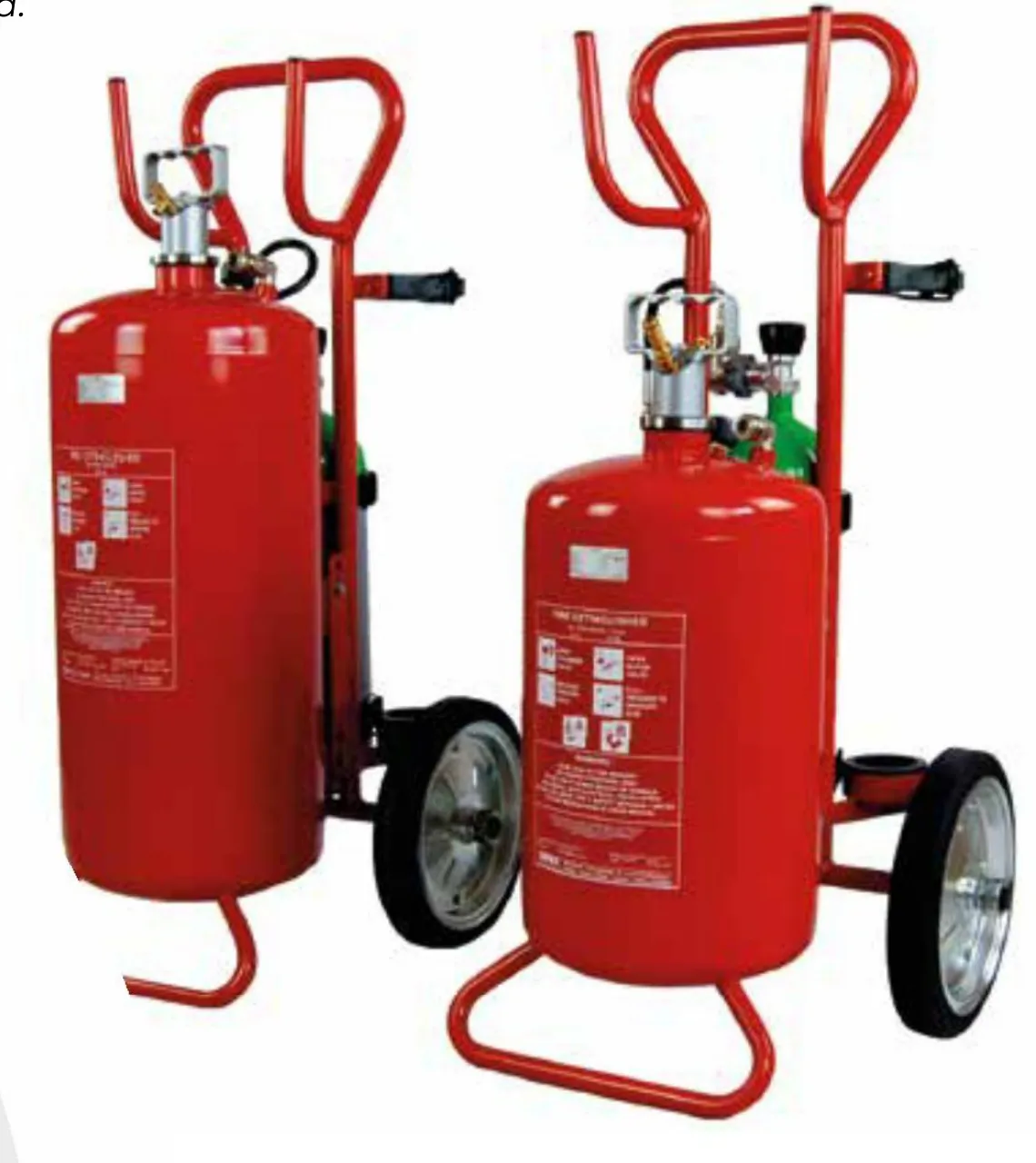

IFEX® 3035 / 3050 trolleys

With 35 or 50 litres of water – for at least 35 impulse shots – the trolleys keep even larger fires under control. They consist of the agent tank, a 6-litre cylinder with regulator, gun holders and a 15 m coaxial hose.

Technical data

Agent capacity	35 / 50 litres
Compressed air cylinder	6 litres
Width × depth × height	525 × 520 × 1070 mm
Empty / full weight (35 l)	41 kg / 76 kg
Empty / full weight (50 l)	48 kg / 98 kg
Hose length	15 m
Tank	Stainless steel 1.4571 – SS316
Working / test pressure	6 bar / 10.4 bar
Recommended additive	0.5 – 1 %

Where IFEX® technology is used

Wherever a fast, mobile intervention with little water is needed.

Proven worldwide

1994Year the IFEX® impulse system was developed

25.000+Users worldwide (as of 2025)

50+Countries using the technology

Made in GermanyEvery part, tested by authorised institutions

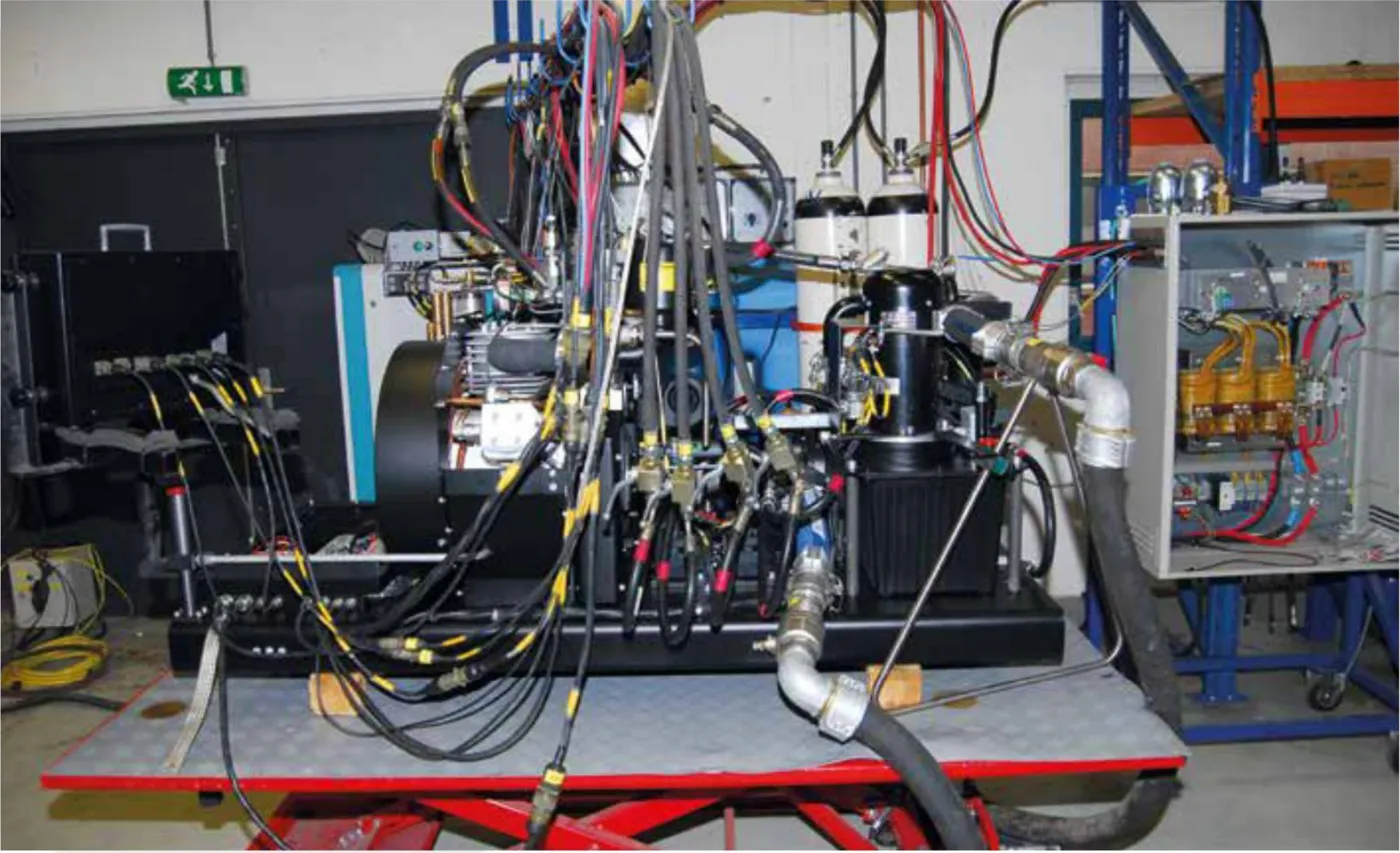

The technology is protected by patents worldwide. Every unit is tested in the manufacturer's laboratory for function and tightness. Before use, staff are trained by specialists to respond correctly and quickly.

PDF

IFEX® presentation
